Simply put, software engineering turns human needs into dependable software while dealing with real-world limits. These limits include time, money, available people, and incomplete information. Software engineering includes programming, but it also covers deciding what to build, checking that it works, and keeping it useful as needs change. To understand the field, it helps to know how it began, how AI is changing it, and where it may go next.

Then: born of a crisis

The term software engineering became well known during the software crisis of the late 1960s. Many early programs were written by one person and were small enough for that person to understand fully. This approach stopped working as software became larger and more important. Projects were late, cost too much, failed after release, or were never finished. These problems became known as the software crisis. In 1968, a NATO conference used the title software engineering to express a hope: building software could become as systematic as other engineering fields. Computers have changed greatly since 1968, but software projects still face late schedules, rising costs, and systems that break easily.

The joys of software engineering still attract people to the field. The Mythical Man-Month by Frederick P. Brooks describes several of them. Engineers can enjoy building things that help other people, solving problems that feel like puzzles, and turning ideas into working software without needing a factory or raw materials. They also keep learning because the field is always changing.

The woes of software engineering also remain. Brooks listed several. Programs must be precise because computers follow instructions, not intentions. Reviews, tests, and fault-tolerant designs help us find or handle the mistakes that will occur. Engineers also depend on people, requirements, and code they do not control. Testing and debugging take careful work, and the last part of a project often costs the most. Products and the technologies used to build them can quickly become outdated. Even so, Brooks concluded that for many people, "the joys far outweigh the woes."

In 1986, Brooks made a famous prediction: no single breakthrough -- no silver bullet -- would transform software development within ten years. In No Silver Bullet, he divided the difficulty of building software into two types. Accidental complexity comes from imperfect tools. Essential complexity comes from the problem being solved. Brooks argued that essential complexity made up most of the remaining work. Therefore, no single new method or tool was likely to make software development ten times more productive, reliable, or simple. He considered several possible breakthroughs, including AI, but rejected them all. His prediction remained true for decades. Then large language models learned to write code. Could they be the silver bullet that Brooks thought was unlikely?

Now: the AI inflection

Software engineering covers the whole life of a system, not only writing its code. Engineers study user needs, design and build the system, test and review it, deploy and secure it, fix failures, and improve it over time. They repeat these activities as needed and work in teams rather than alone. Success is measured by the value delivered, not the amount of code written. Practices such as agile processes, DevOps, and continuous delivery help teams manage this work. The SWEBOK guide gives an overview of the field.

AI now helps with nearly all of these activities. Within a few years, AI coding tools became a normal part of many developers' work. These tools can do much more than complete lines of code. They can explore an unfamiliar codebase, generate and change code, suggest tests, diagnose failures, review changes, and draft documentation. In agentic mode, an AI tool can receive a goal written in natural language, edit several files, run tests, and prepare the changes for a human to review. Accepting generated code without checking it carefully is often called vibe coding.

However, generating code faster does not automatically produce better software. In surveys, developers' most common frustration is AI output that is almost right, but not quite. Finding a small mistake in code that looks correct can require more skill than writing the code. One randomized study found that experienced developers worked more slowly with AI even though they believed they had worked faster. A later study of newer agentic tools found some improvement in speed, but the study could not show clearly how large the improvement was. In short, the benefit depends on the task, codebase, tool, and user's skill. Our impressions alone do not measure that benefit well.

The clearest finding so far is that AI amplifies both the strengths and weaknesses of the engineering process around it. Research involving thousands of professionals supports this view. A team with clear goals, good tests, effective reviews, and fast feedback can turn faster code generation into useful results sooner. A team without these practices may simply create defects sooner. In Brooks' terms, AI may be our strongest tool yet for reducing accidental complexity. It also helps with essential work, such as exploring requirements and drafting designs. However, humans still decide what to build and whether it has been built well. Therefore, AI makes software engineering fundamentals more important, not less.

Engineers are also building more software that uses AI as part of the system. Such systems bring their own concerns, including data quality, unpredictable output, evaluation, privacy, algorithmic bias, and monitoring.

Next: the evolving engineer

Developers are giving AI larger pieces of work: first lines of code, then whole tasks, and perhaps soon larger parts of a project. In controlled tests, AI agents can complete increasingly long tasks. However, real projects that last many years are more complicated than such tests. Giving instructions through natural language, examples, and tests may become as important as writing code by hand.

One possible next step is AI-native software engineering: designing the workflow for ongoing collaboration between humans and AI. This approach goes further than adding an AI assistant to today's process. In AI-assisted software engineering, AI works inside a process directed by humans. In agentic software engineering, humans give AI tasks with several steps. In AI-native engineering, teams redesign the process itself. In this possible future, sometimes called SE 3.0, engineers record goals, constraints, designs, and acceptance criteria in forms that AI agents can use. Agents plan changes, write code, run tests, and review one another's work. Humans set the direction, make difficult choices, and decide what is safe to release. Requirements, tests, architecture records, and security controls will then matter more, not less. They set the limits within which the agents work.

Experts disagree about how far this change will go, so evaluate their predictions carefully. Some predict the end of programming, with most software requested in natural language and generated when needed. Others point out that benchmarks leave out much of real software work, such as unclear goals, knowledge that has not been written down, and long-term maintenance. They also argue that a code change that passes its tests is not necessarily part of a dependable system. Checking whether AI evaluations reflect real software work is itself a software engineering problem.

As it becomes easier to give implementation work to AI, deciding, designing, checking, and taking responsibility become more valuable. Someone must understand the users and the subject area. Someone must decide what should and should not be built, divide the work into clear parts, design a system that can be maintained, spot mistakes in code that looks correct, combine human and AI work, and take responsibility for the released system. AI can help with every one of these activities, but it cannot take responsibility for the result.

Engineers must understand the work before they can direct, evaluate, or fix it. Therefore, software engineering foundations matter more than ever. The world still needs many software engineers, but the skills they use may change. They may spend less time writing code by hand and more time directing, evaluating, and taking responsibility for it.

Software engineering may now be going through its biggest change since 1968, but its future is still unclear. The rewards Brooks described remain. Some old difficulties may be becoming smaller, while new ones appear. We do not yet know whether AI will be the silver bullet that Brooks thought was unlikely, or simply a powerful tool that amplifies both the strengths and weaknesses of software teams.

Object-Oriented Programming (OOP) is a programming paradigm. A programming paradigm guides programmers to analyze programming problems, and structure programming solutions, in a specific way.

Programming languages have traditionally divided the world into two parts—data and operations on data. Data is static and immutable, except as the operations may change it. The procedures and functions that operate on data have no lasting state of their own; they’re useful only in their ability to affect data.

This division is, of course, grounded in the way computers work, so it’s not one that you can easily ignore or push aside. Like the equally pervasive distinctions between matter and energy and between nouns and verbs, it forms the background against which you work. At some point, all programmers—even object-oriented programmers—must lay out the data structures that their programs will use and define the functions that will act on the data.

With a procedural programming language like C, that’s about all there is to it. The language may offer various kinds of support for organizing data and functions, but it won’t divide the world any differently. Functions and data structures are the basic elements of design.

Object-oriented programming doesn’t so much dispute this view of the world as restructure it at a higher level. It groups operations and data into modular units called objects and lets you combine objects into structured networks to form a complete program. In an object-oriented programming language, objects and object interactions are the basic elements of design.

_{-- Object-Oriented Programming with Objective-C, Apple}

Some other examples of programming paradigms are:

Some programming languages support multiple paradigms.
Example Java is primarily an OOP language, but it supports limited forms of functional programming and can be used to write procedural code (although this is not recommended), e.g., se-edu/addressbook-level1.
Example JavaScript and Python support functional, procedural, and OOP programming.

An object in Object-Oriented Programming (OOP) has state and behavior, similar to objects in the real world.

Every object has both state (data) and behavior (operations on data). In that, they’re not much different from ordinary physical objects. It’s easy to see how a mechanical device, such as a pocket watch or a piano, embodies both state and behavior. But almost anything that’s designed to do a job does, too. Even simple things with no moving parts such as an ordinary bottle combine state (how full the bottle is, whether or not it’s open, how warm its contents are) with behavior (the ability to dispense its contents at various flow rates, to be opened or closed, to withstand high or low temperatures).

It’s this resemblance to real things that gives objects much of their power and appeal. They can not only model components of real systems, but equally as well fulfill assigned roles as components in software systems.

_{-- Object-Oriented Programming with Objective-C, Apple}

OOP views the world as a network of interacting objects.

OOP solutions try to create a similar object network inside the computer’s memory – a sort of virtual simulation of the corresponding real world scenario – so that a similar result can be achieved programmatically.

OOP does not demand that the virtual world object network follow the real world exactly.

Every object has both state (data) and behavior (operations on data).

Every object has an interface and an implementation.

Every real-world object has,

• an interface through which other objects can interact with it, and
• an implementation that supports the interface but may not be accessible to the other objects.

Similarly, every object in the virtual world has an interface and an implementation.

Objects interact by sending messages. Both real world and virtual world object interactions can be viewed as objects sending messages to each other. The message can result in the sender object receiving a response and/or the receiver object’s state being changed. Furthermore, the result can vary based on which object received the message, even if the message is identical (see rows 1 and 2 in the example below).

The concept of Objects in OOP is an abstraction mechanism because it allows us to abstract away lower-level details and work with larger units. That is, we can ignore details such as data formats and method implementations, and work at the level of objects.

Example You can deal with a Person object that represents the person Adam and query the object for Adam's age instead of dealing with details such as Adam’s date of birth (DoB), in what format the DoB is stored, the algorithm used to calculate the age from the DoB, etc.

Encapsulation protects an implementation from unintended actions and from inadvertent access.
_{-- Object-Oriented Programming with Objective-C, Apple}

An object is an encapsulation of some data and related behavior in terms of two aspects:

1. The packaging aspect: An object packages data and related behavior together into one self-contained unit.

2. The information hiding aspect: The data in an object is hidden from the outside world and is only accessible using the object's interface.

Writing an OOP program is essentially writing instructions that the computer will use to,

1. create the virtual world of the object network, and
2. provide it with the inputs to produce the outcome you want.

A class contains instructions for creating a specific kind of object. Sometimes, multiple objects keep the same type of data and have the same behavior because they are of the same kind. Instructions for creating a 'kind' (or ‘class’) of object can be written once, and those same instructions can be used to objects of that kind. We call such instructions a class.

While all objects of a class have the same attributes, each object has its own copy of the attribute value.
Example All Person objects have the name attribute but the value of that attribute varies between Person objects.

However, some attributes are not suitable to be maintained by individual objects. Instead, they should be maintained centrally, shared by all objects of the class. They are like ‘global variables’ but attached to a specific class. Such variables whose value is shared by all instances of a class are called class-level attributes.
Example The attribute totalPersons should be maintained centrally and shared by all Person objects rather than copied at each Person object.

Similarly, when a normal method is being called, a message is being sent to the receiving object and the result may depend on the receiving object.
Example Sending the getName() message to the Adam object results in the response "Adam" while sending the same message to the Beth object results in the response "Beth".

However, there can be methods related to a specific class but not suitable for sending messages to a specific object of that class. Such methods that are called using the class instead of a specific instance are called class-level methods.
Example The method getTotalPersons() is not suitable to send to a specific Person object because a specific object of the Person class should not have to know about the total number of Person objects.

Class-level attributes and methods are collectively called class-level members (also called static members sometimes because some programming languages use the keyword static to identify class-level members). They are to be accessed using the class name rather than an instance of the class.

An Enumeration is a fixed set of values that can be considered as a data type. An enumeration is often useful when using a regular data type such as int or String would allow invalid values to be assigned to a variable.

Objects in an OO solution need to be connected to each other to form a network so that they can interact with each other. Such connections between objects are called associations.
Example Suppose an OOP program for managing a learning management system creates an object structure to represent the related objects. In that object structure you can expect to have associations between a Course object that represents a specific course and Student objects that represent students taking that course.

Associations in an object structure can change over time.
Example To continue the previous example, the associations between a Course object and Student objects can change as students enroll in the course or drop the course over time.

Associations among objects can be generalized as associations between the corresponding classes too.
Example In our example, as some Course objects can have associations with some Student objects, you can view it as an association between the Course class and the Student class.

Implementing associations

You use instance-level variables to implement associations.
Example In our example, the Course class can have a students variable to keep track of students associated with a particular course.

When two classes are linked by an association, it does not necessarily mean both objects taking part in an instance of the association know about (i.e., have a reference to) each other. The concept of navigability tells us if an object taking part in an association knows about the other. In other words, it tells us if we can 'navigate' from the one object to the other in a given direction -- because if the object 'knows' about the other, it has a reference to the other object, and we can use that reference to 'navigate to' (i.e., access) that other object.

Navigability can be unidirectional or bidirectional. Suppose there is an association between the classes Box and Rope, and the Box object b and the Rope object r are taking part in one instance of that association.

• Unidirectional: If the navigability is from Box to Rope, b will have a reference to r but r will not have a reference to b. That is, one can navigate from b to r using b's reference to r (but not in the other direction).
  Similarly, if the navigability is in the other direction, r will have a reference to b but b will not have a reference to r.
• Bidirectional: b will have a reference to r and r will have a reference to b i.e., the two objects will be pointing to each other for the same single instance of the association.

Note that two in opposite directions do not add up to a single bidirectional association.

class Person {
    Cat pet;
    //...
}

class Cat {
    Person owner;
    //...
}



    Copy










    Wrap Text









class Person:

  def __init__(self):
    self.pet = None  # a Cat object

class Cat:

  def __init__(self):
    self.owner = None  # a Person object



    Copy










    Wrap Text









class Person {
    Cat pet;
    //...
}

class Cat{
    Person breeder;
    //...
}



    Copy










    Wrap Text









class Person:

  def __init__(self):
    self.pet = None  # a Cat object

class Cat:

  def __init__(self):
    self.breeder = None  # a Person object



    Copy










    Wrap Text









Multiplicity is the aspect of an OOP solution that dictates how many objects take part in each association.
Example The multiplicity of the association between Course objects and Student objects tells you how many Course objects can be associated with one Student object and vice versa.

Implementing multiplicity

A normal instance-level variable gives us a 0..1 multiplicity (also called optional associations) because a variable can hold a reference to a single object or null.

class Logic {
    Minefield minefield;
    // ...
}

class Minefield {
    //...
}



    Copy










    Wrap Text









class Logic:

  def __init__(self):
    self.minefield = None

  # ...


class Minefield:
  # ...



    Copy










    Wrap Text









A variable can be used to implement a 1 multiplicity too (also called compulsory associations).

class Logic {
    ConfigGenerator cg = new ConfigGenerator();
    ...
}



    Copy










    Wrap Text









To implement other multiplicities, choose a suitable data structure such as Arrays, ArrayLists, HashMaps, Sets, etc.

class Minefield {
    Cell[][] cell;
    //...
}



    Copy










    Wrap Text









class Minefield:

  def __init__(self):
    self.cells = {1:[], 2:[], 3:[]}



    Copy










    Wrap Text









In the context of OOP associations, a dependency is a need for one class to depend on another without having a direct association in the same direction. Reason for the exclusion: If there is an association from class Foo to class Bar (i.e., navigable from Foo to Bar), that means Foo is obviously dependent on Bar and hence there is no point in mentioning dependency specifically. In other words, we are specifically focusing on non-obvious dependencies here. One cause of such dependencies is interactions between objects that do not have a long-term link between them.
Example A Course class can have a dependency on a Registrar class because the Course class needs to refer to the Registrar class to obtain the maximum number of students it can support (e.g., Registrar.MAX_COURSE_CAPACITY).

class Foo {

    int calculate(Bar bar) {
        return bar.getValue();
    }
}

class Bar {
    int value;

    int getValue() {
        return value;
    }
}



    Copy










    Wrap Text









class Foo:

    def calculate(self, bar):
        return bar.value;

class Bar:

    def __init__(self, value):
      self.value = value



    Copy










    Wrap Text









A composition is an association that represents a strong whole-part relationship.
Example A Board (used for playing board games) consists of Square objects.

Composition implies:

1. when the whole is destroyed, parts are destroyed too i.e., the part cannot exist without being attached to a whole.
2. there cannot be cyclical links.

Whether a relationship is a composition can depend on the context.

A common use of composition is when parts of a big class are carved out as smaller classes to make the internal design easier to manage. In such cases, the classes extracted out still act as parts of the bigger class and the outside world has no business knowing about them.

Cascading deletion alone is not sufficient for composition. Suppose there is a design in which Person objects are attached to Task objects and the former get deleted whenever the latter are deleted. This fact alone does not mean there is a composition relationship between the two classes. For it to be composition, a Person must be an integral part of a Task in the context of that association, at the concept level (not simply at implementation level).

Identifying and keeping track of composition relationships in the design has benefits such as helping to maintain the data integrity of the system. For example, when you know that a certain relationship is a composition, you can take extra care in your implementation to ensure that when the whole object is deleted, all its parts are deleted too.

Implementing composition

Composition is implemented using a normal variable. If correctly implemented, the ‘part’ object will be deleted when the ‘whole’ object is deleted. Ideally, the ‘part’ object may not even be visible to clients of the ‘whole’ object.

class Email {
    private Subject subject;
  ...
}



    Copy










    Wrap Text









class Email:

  def __init__(self):
    self.__subject = Subject()



    Copy










    Wrap Text









Aggregation represents a container-contained relationship. It is a weaker relationship than composition.
Example SportsClub can act as a container for Person objects who are members of the club. Person objects can survive without a SportsClub object.

Implementing aggregation

Implementation is similar to that of composition except the containee object can exist even after the container object is deleted.

class Team {
    Person leader;
    ...
    void setLeader(Person p) {
        leader = p;
    }
}



    Copy










    Wrap Text









class Team:

  def __init__(self):
    self.__leader = None

  def set_leader(self, person):
    self.__leader = person



    Copy










    Wrap Text









An association class represents additional information about an association. It is a normal class but plays a special role from a design point of view.
Example A Man class and a Woman class are linked with a ‘married to’ association and there is a need to store the date of marriage. However, that data is related to the association rather than specifically owned by either the Man object or the Woman object. In such situations, an additional association class can be introduced, e.g., a Marriage class, to store such information.

Implementing association classes

There is no special way to implement an association class. It can be implemented as a normal class that has variables to represent the endpoints of the association it represents.

class Transaction {

    //all fields are compulsory
    Person seller;
    Person buyer;
    Date date;
    String receiptNumber;

    Transaction(Person seller, Person buyer, Date date, String receiptNumber) {
        //set fields
    }
}



    Copy










    Wrap Text









The OOP concept Inheritance allows you to define a new class based on an existing class.
Example For example, you can use inheritance to define an EvaluationReport class based on an existing Report class so that the EvaluationReport class does not have to duplicate data/behaviors that are already implemented in the Report class. The EvaluationReport can inherit the wordCount attribute and the print() method from the base class Report.

• Other names for Base class: Parent class, Superclass
• Other names for Derived class: Child class, Subclass, Extended class

A superclass is said to be more general than the subclass. Conversely, a subclass is said to be more specialized than the superclass.

Applying inheritance to a group of similar classes can result in the common parts of those classes being extracted into more general classes.
Example Man and Woman behave the same way for certain things. However, the two classes cannot be simply replaced with a more general class Person because of the need to distinguish between Man and Woman for certain other things. A solution is to add the Person class as a superclass (to contain the code common to men and women) and let Man and Woman inherit from the Person class.

Inheritance implies that the derived class can be considered a subtype of the base class (and the base class is a supertype of the derived class), resulting in an is-a relationship.

Inheritance does not necessarily mean a subtype relationship exists. However, the two often go hand-in-hand. For simplicity, at this point let us assume inheritance implies a subtype relationship.

Inheritance relationships through a chain of classes can result in inheritance hierarchies (aka inheritance trees).

Example Two inheritance hierarchies/trees are given below. Note that the triangle points to the parent class. Observe how the Parrot is a Bird as well as an Animal.

Multiple Inheritance is when a class inherits directly from multiple classes. Multiple inheritance among classes is allowed in some languages (e.g., Python, C++) but not in other languages (e.g., Java, C#).

Example The Honey class inherits from the Food class and the Medicine class because honey can be consumed as a food as well as a medicine (in some oriental medicine practices). Similarly, a Car is a Vehicle, an Asset, and a Liability.

Method overriding is when a subclass changes the behavior inherited from the parent class by re-implementing the method. Overridden methods have the same name, the same type signature, and the same (or a subtype of the) return type.

Method overloading is when there are multiple methods with the same name but different type signatures. Overloading is used to indicate that multiple operations do similar things but take different parameters.

An interface is a behavior specification i.e., a collection of . If a class , it means the class is able to support the behaviors specified by that interface.

There are a number of situations in software engineering when it is important for disparate groups of programmers to agree to a "contract" that spells out how their software interacts. Each group should be able to write their code without any knowledge of how the other group's code is written. Generally speaking, interfaces are such contracts. _{--Oracle Docs on Java
Example Suppose SalariedStaff is an interface that contains two methods setSalary(int) and getSalary(). AcademicStaff can declare itself as implementing the SalariedStaff interface, which means the AcademicStaff class must implement all the methods specified by the SalariedStaff interface i.e., setSalary(int) and getSalary().}

A class implementing an interface results in an is-a relationship, just like in class inheritance.
Example In the example above, AcademicStaff is a SalariedStaff. An AcademicStaff object can be used anywhere a SalariedStaff object is expected e.g., SalariedStaff ss = new AcademicStaff().

You can declare a class as an abstract class when it is merely a representation of commonalities among its subclasses, in which case it does not make sense to instantiate objects of that class.
Example The Animal class that exists as a generalization of its subclasses Cat, Dog, Horse, Tiger, etc. can be declared as abstract because it does not make sense to instantiate an Animal object.

Example The move method of the Animal class is likely to be an abstract method as it is not possible to implement a move method at the Animal class level to fit all subclasses because each animal type can move in a different way.

A class that has an abstract method becomes an abstract class because the class definition is incomplete (due to the missing method body) and it is not possible to create objects using an incomplete class definition.

Every instance of a subclass is an instance of the superclass, but not vice versa. As a result, inheritance allows substitutability: the ability to substitute a child class object where a parent class object is expected.

Example Consider the Staff hierarchy below.

An AcademicStaff is an instance of a Staff, but a Staff is not necessarily an instance of an AcademicStaff. That is, wherever an object of the superclass is expected, it can be substituted by an object of any of its subclasses.

The following code is valid because an AcademicStaff object is substitutable for a Staff object.

Staff staff = new AcademicStaff(); // OK



    Copy










    Wrap Text









But the following code is not valid because staff is declared as a Staff type and therefore its value may or may not be of type AcademicStaff, which is the type expected by variable academicStaff.

Staff staff;
...
AcademicStaff academicStaff = staff; // Not OK



    Copy










    Wrap Text









Overridden methods are resolved using dynamic binding, and therefore resolve to the implementation in the object's actual type.

void adjustSalary(int byPercent) {
    for (Staff s: staff) {
        s.adjustSalary(byPercent);
    }
}



    Copy










    Wrap Text









In contrast, overloaded methods are resolved using static binding.

class Account {

    Account() {
        // Signature: ()
        ...
    }

    Account(String name, String number, double balance) {
        // Signature: (String, String, double)
        ...
    }
}



    Copy










    Wrap Text









void calculateGrade(int[] averages) { ... }
void calculateGrade(String matric) { ... }



    Copy










    Wrap Text









Polymorphism allows you to write code targeting superclass objects, use that code on subclass objects, and achieve possibly different results based on the actual class of the object.

Polymorphism literally means "ability to take many forms".

Three concepts combine to achieve polymorphism: substitutability, operation overriding, and dynamic binding.

• Substitutability: Because of substitutability, you can write code that expects objects of a parent class and yet use that code with objects of child classes. That is how polymorphism is able to treat objects of different types as one type.
• Overriding: To get polymorphic behavior from an operation, the operation in the superclass needs to be overridden in each of the subclasses. That is how overriding allows objects of different subclasses to display different behaviors in response to the same method call.
• Dynamic binding: Calls to overridden methods are bound dynamically to the implementation of the actual object's class at runtime. That is how the polymorphic code can call the method of the parent class and yet execute the implementation of the child class.

What is the difference between a Class, an Abstract Class, and an Interface?

• An interface is a behavior specification with no implementation.
• A class is a behavior specification + implementation.
• An abstract class is a behavior specification + a possibly incomplete implementation.

How does overriding differ from overloading?

Overloading is used to indicate that multiple operations do similar things but take different parameters. Overloaded methods have the same method name but different method signatures and possibly different return types.

Overriding is when a subclass redefines an operation using the same method name and the same type signature. Overridden methods have the same name, same method signature, and same return type.

A software requirement specifies a need to be fulfilled by the software product.

A software project may be one of two types:

• a brownfield project, i.e., a project to replace or update an existing software product
  Example Adding an online payment option to a university's existing course registration system.
• a greenfield project, i.e., a project to develop a new system from scratch
  Example Building a new app that lets students swap tutorial slots, where no such system exists yet.

In either case, requirements need to be gathered, analyzed, specified, and managed.

Requirements come from stakeholders.

Identifying requirements is often not easy.
Example Stakeholders may not be aware of their precise needs, may not know how to communicate their requirements correctly, or may not be willing to spend effort identifying requirements.

Requirements can be divided into two in the following way:

1. Functional requirements specify what the system should do.
   Example The system should allow a user to search for a book by its title.
2. Non-functional requirements specify the constraints under which the system is developed and operated.
   Example The search should return results within two seconds.

You may have to spend extra effort identifying NFRs as early as possible because:

1. NFRs are easier to miss.
   Example Stakeholders tend to think of functional requirements first.
2. Sometimes NFRs are critical to the success of the software.
   Example A web application that is too slow or that has weak security is unlikely to succeed even if it has all the right functionality.

Requirements can be prioritized based on the importance and urgency, while keeping in mind the constraints of schedule, budget, staff resources, quality goals, and other constraints.

A common approach is to group requirements into priority categories. Note that all such scales are subjective, and stakeholders define the meaning of each level in the scale for the project at hand.

Some requirements can be discarded if they are considered ‘out of ’.

Here are some characteristics of well-defined requirements ^{[📖 zielczynski]}:

• Unambiguous
• Testable (verifiable)
• Clear (concise, terse, simple, precise)
• Correct
• Understandable
• Feasible (realistic, possible)
• Independent
• Necessary
• Implementation-free (i.e., abstract)

Two of these carry most of the weight: a requirement that is unambiguous and testable states an observable result, so evidence can settle whether it has been met. A requirement that states a judgment instead can only be settled by argument. To make one testable, say who is involved, what they are doing, and what result counts as success.

Besides these criteria for individual requirements, the set of requirements as a whole should be:

• Consistent
• Non-redundant
• Complete

Requirements are not settled once and then left alone; they keep changing while the product is being built. Three reasons account for most of it:

1. Stakeholders work out what they want by seeing something concrete.
   Example A user who could not describe the report they needed can say exactly what is wrong with the first version of it.
2. The world the product lives in changes.
   Example A new regulation comes into force, or a competitor ships a feature that users now expect.
3. The team learns what things actually cost.
   Example A requirement turns out to take ten times the effort everyone assumed, which changes whether it is worth having at all.

Two things follow from this.

A specification that is not kept up to date does not become harmless, it becomes misleading, because people keep acting on it. A developer builds the version that was superseded a month ago; a tester reports a defect against behavior nobody wants any more.

Every change is also a decision about what will not be built. Accepting a new requirement late competes with requirements already agreed, so priorities have to be revisited rather than settled once at the start.

In a brainstorming session there are no "bad" ideas. The aim is to generate ideas, not to validate them. Brainstorming encourages you to "think outside the box" and put "crazy" ideas on the table without fear of rejection.

Surveys can be used to solicit responses and opinions from a large number of stakeholders regarding a current product or a new product.

Observing users in their natural work environment can uncover product requirements. Usage data from an existing system can also show how that system is being used, which can help in building a better replacement.
Example Usage data can reveal the situations where the user makes mistakes when using the current system.

Interviewing stakeholders and domain experts can produce useful information about project requirements. How much it produces depends far more on how the interview is run than on how long it lasts.

1. Find out what the person is responsible for before you meet them, and decide what only they can tell you. An interview spent on things you could have looked up is a wasted one.
2. Open with something concrete rather than an abstract question. 'What do you need?' invites a vague answer, or a feature request that hides the need behind it. Walking through a recent situation, a screen of the current system, or a prototype gets you specifics.
3. Ask what goes wrong today and what they do instead. Workarounds are where unmet requirements hide: if someone keeps a private spreadsheet, the system is failing them in a way worth understanding.
4. Play the answer back in your own words before moving on. It is very common for both sides to leave an interview believing they agreed, having understood different things.
5. Confirm your written notes with the interviewee afterwards. They can correct what you misheard while they still remember what they said.

Treat what you hear as claims to be checked, rather than requirements to be recorded. People often describe the process they are supposed to follow rather than the one they actually follow, and two stakeholders can want things that cannot both be true.
Example One department wants every leave application approved by a manager; another wants short absences to need no approval at all.

Focus groups are a kind of informal interview within an interactive group setting. A group of people (e.g. potential users, beta testers) is asked about their understanding of a specific issue, process, product, advertisement, etc.

Prototyping can uncover requirements, in particular, those related to how users interact with the system. UI prototypes or mock-ups, also called wireframe diagrams, are often used in brainstorming sessions or in meetings with users to get quick feedback.

Prototyping can be used for discovering as well as specifying requirements e.g. a UI prototype can serve as a specification of what to build.

Studying existing products can unearth shortcomings that a new product can address. Product manuals and other forms of documentation can tell us how existing solutions work.
Example When developing a game for a mobile device, a look at a similar PC game can give insight into the kind of features and interactions the mobile game can offer.

Gathering requirements tells you what people said; validating requirements tells you whether what you wrote down is what they meant. It is worth distinguishing from the check that comes much later:

• Validating requirements asks whether you have written down the right thing.
• Verifying software asks whether what was built matches what was written down.

A team that only does the second can build exactly the wrong product, correctly.

Three checks are cheap enough to run on a student project:

1. Walk the requirement back to the stakeholder in words they would use, and wait for the correction. Reading your own notes aloud to the person who gave them to you finds misunderstandings faster than any amount of rereading them yourself.
2. Put something in front of a user instead of describing it. People correct a rough sketch or a mock-up far more readily than they correct a paragraph, because they can see what they would actually be given.
3. State the observable result that would settle the requirement. If nobody can say what would count as having met it, the requirement is not yet saying anything a team could build against.

A requirement you cannot yet state in observable terms is not wrong, it is not ready. Record it as an open question, or as the next thing to put a prototype in front of. A product vision, an unresolved disagreement between two stakeholders, or a quality concern that nobody has quantified yet are all legitimate inputs at this stage; deleting them because they cannot be phrased as a check yet would throw away the very things most worth resolving.

A textual description (i.e., prose) can be used to describe requirements. Prose is especially useful when describing abstract ideas such as the vision of a product.

Avoid using lengthy prose to describe requirements; they can be hard to follow.

A common format for writing user stories is:

You can write user stories using a physical medium or a digital tool. For example, you can use index cards or sticky notes, and arrange them on walls or tables. Alternatively, you can use software (e.g., GitHub Project Boards, Trello, Google Docs, ...) to manage user stories digitally.

User stories in use

With sticky notes

^{[credit: https://www.flickr.com/photos/jakuza/2682466984/]}

---

With paper

^{[credit: https://www.flickr.com/photos/jakuza/with/2726048607/]}

---

With software

^{[credit: https://commons.wikimedia.org/wiki/File:User_Story_Map_in_Action.png]}

---

---

The {benefit} can be omitted if it is obvious.

It is recommended to confirm there is a concrete benefit even if you omit it from the user story. If not, you could end up adding features that have no real benefit.

You can add more characteristics to the {user role} to provide more context to the user story.

You can write user stories at various levels. High-level user stories, called epics (or themes) cover bigger functionality. You can then break down these epics into multiple user stories of normal size.

You can add conditions of satisfaction to a user story to specify things that need to be true for the user story implementation to be accepted as ‘done’.

These are more widely known as acceptance criteria. Whatever they are called, they are the part of a story that states an observable result, and therefore the part that survives when the conversation behind the story does not.

Other useful information that can be added to a user story includes (but is not limited to):

• Priority: how important the user story is
• Size: the estimated effort to implement the user story
• Urgency: how soon the feature is needed

User stories capture user requirements in a way that is convenient for , , and .

[User stories] strongly shift the focus from writing about features to discussing them. In fact, these discussions are more important than whatever text is written. _{[Mike Cohn, MountainGoat Software 🔗]}

User stories differ from mainly in the level of detail. User stories should only provide enough details to make a reasonably low-risk estimate of how long the user story will take to implement. When the time comes to implement the user story, the developers will meet with the customer face-to-face to work out a more detailed description of the requirements. [more...]

Leaving out detail on purpose relies on the implementer being able to come back and ask. Where asking is slow or does not happen at all — work handed to another team across a time zone, or generated in a single pass by an AI coding assistant with no round of clarification — an unstated detail never surfaces as a question. It gets filled in with a plausible guess, and the guess arrives faster than the question ever would.
Example 'As a user, I can delete a task' leaves open whether deleting is recoverable. Someone who can ask, asks. Someone working from the story alone picks one, and the answer looks finished either way.

The further the implementer sits from the conversation, the more of a story's meaning has to survive in writing — which is the job the acceptance criteria are doing.

User stories can capture non-functional requirements too because even NFRs must benefit some stakeholder.

While user stories can be recorded on in the initial stages, an online tool is more suitable for longer-term management of user stories, especially if the team is not .

A use case describes an interaction between the user and the system for a specific functionality of the system.

System: Online Banking System (OBS)
Use case: UC23 - Transfer Money
Actor: User
MSS:
  1. User chooses to transfer money.
  2. OBS requests for details of the transfer.
  3. User enters the requested details.
  4. OBS requests for confirmation.
  5. User confirms.
  6. OBS transfers the money and displays the new account balance.
  Use case ends.

UML includes a diagram type called use case diagrams that can illustrate use cases of a system visually, providing a visual ‘table of contents’ of the use cases of a system.

In the example on the right, note how use cases are shown as ovals and user roles relevant to each use case are shown as stick figures connected to the corresponding ovals.

Use cases capture the functional requirements of a system.

A use case is an interaction between a system and its actors.

Actors in Use Cases

A use case can involve multiple actors.

An actor can be involved in many use cases.

A single person/system can play many roles.

Many persons/systems can play a single role.

Use cases can be specified at various levels of detail.

While modeling user-system interactions,

• start with high level use cases and progressively work toward lower level use cases.
• be mindful of which level of detail you are working at, and do not mix use cases of different levels.

Writing use case steps

Extensions are "add-ons" to the MSS that describe exceptional/alternative flows of events. They describe variations of the scenario that can happen if certain things are not as expected by the MSS. Extensions appear below the MSS.

Example Some extensions added to the use case in the previous example:

System: Online Banking System (OBS)
Use case: UC23 - Transfer Money
Actor: User
MSS:
  1. User chooses to transfer money.
  2. OBS requests for details of the transfer.
  3. User enters the requested details.
  4. OBS requests for confirmation.
  5. User confirms.
  6. OBS transfers the money and displays the new account balance.
  Use case ends.

Extensions:
  3a. OBS detects an error in the entered data.
      3a1. OBS requests for the correct data.
      3a2. User enters new data.
      Steps 3a1-3a2 are repeated until the data entered are correct.
      Use case resumes from step 4.

  3b. User requests to schedule the transfer for a future date.
      3b1. OBS requests for confirmation.
      3b2. User confirms future transfer.
      Use case ends.

  *a. At any time, User chooses to cancel the transfer.
      *a1. OBS requests to confirm the cancellation.
      *a2. User confirms the cancellation.
      Use case ends.

  *b. At any time, 120 seconds lapse without any input from the User.
      *b1. OBS cancels the transfer.
      *b2. OBS informs the User of the cancellation.
      Use case ends.

Note that the numbering style is not a universal rule but a widely used convention. Based on that convention,

• either of the extensions marked 3a. and 3b. can happen just after step 3 of the MSS.
• the extension marked as *a. can happen at any step (hence, the *).

When separating extensions from the MSS, keep in mind that the MSS should be self-contained. That is, the MSS should give us a complete usage scenario.

Also note that it is not useful to mention events such as power failures or system crashes as extensions because the system cannot function beyond such catastrophic failures.

In use case diagrams you can use the <<extend>> arrows to show extensions. Note the direction of the arrow is from the extension to the use case it extends and the arrow uses a dashed line.

You can use actor generalization in use case diagrams using a symbol similar to that of UML notation for inheritance.

Example Actor Blogger can do all the use cases the actor Guest can do, as a result of the actor generalization relationship given in the diagram.

Do not over-complicate use case diagrams by trying to include everything possible. A use case diagram is a brief summary of the use cases that is used as a starting point. Details of the use cases can be given in the use case descriptions.

Some use ‘System’ as an actor to indicate that something is done by the system itself without being initiated by a user or an external system.

Example The diagram below can be used to indicate that the system generates daily reports at midnight.

However, others argue that only use cases providing value to an external user/system should be shown in the use case diagram. For example, they argue that view daily report should be the use case, while generate daily report should not be shown in the use case diagram because it is simply something the system has to do to support the view daily report use case.

You are recommended to follow the latter view (i.e., not to use System as a user). Limit use cases to modeling behaviors that involve an external actor.

UML is not very specific about the text contents of a use case. Hence, there are many styles for writing use cases. For example, the steps can be written as a continuous paragraph.

Use cases should be easy to read. Note that there is no strict rule requiring you to write all details of all steps or to use all the elements of a use case.

There are some advantages of documenting system requirements as use cases:

• Because they use a simple notation and plain English descriptions, they are easy for users to understand and give feedback.
• They decouple user intention from mechanism (note that use cases should not include UI-specific details), allowing the system designers more freedom to optimize how functionality is provided to a user.
• Identifying all possible extensions encourages us to consider all situations that a software product might face during its operation.
• Separating typical scenarios from special cases encourages us to optimize the typical scenarios.

One of the main disadvantages of use cases is that they are not good for capturing requirements that do not involve a user interacting with the system. Hence, they should not be used as the sole means to specify requirements.

Specifying a term in the glossary is useful in the following cases:

• A domain-specific/technical term that may not be known to all stakeholders, to indicate its definition
• When a term has multiple meanings, to indicate which of them is used in the project
• When there are multiple terms used for the same concept, to indicate which of them will be used in the project

A supplementary requirements section can be used to capture requirements that do not fit elsewhere. Typically, this is where most Non-Functional Requirements will be listed.

Teams package these formats in different ways: some collect them into a single document that says what is to be built, while others keep each format where it is most useful and write down only what needs agreeing.

Where there is such a document, product-led teams usually call it a product requirements document (PRD), or a product brief. It typically carries the product's purpose, who it is for, the scope and the priorities within it, the stories or use cases that matter most, and the quality constraints the product has to meet.

A software requirements specification (SRS) is its more formal counterpart, used where requirements have to be agreed precisely with a customer, audited, or contracted for. An SRS is heavier, more structured, and more stable than a PRD; the two are not interchangeable names for the same thing.

A single document is one common packaging, not a rule. Many teams keep user stories in a tracker, the glossary in a wiki, and prototypes in a design tool, and write down only what needs agreeing in one place.

Each format earns its place by doing a different job:

• Prose frames the problem and the product's purpose.
• A feature list supports scope and delivery discussions.
• A user story records one negotiable slice of user value.
• A use case makes one workflow, and what can go wrong in it, precise.
• A glossary settles what shared terms mean.
• Supplementary requirements capture what cuts across all of the above.

Choosing between them is a question of what you need to be precise about, not of which notation is better.

Working from such a document has a name: specification-driven development means starting from a specification that is clear, versioned, and testable, and using it both to direct the implementation and to judge what comes back. The second half is the part that is easy to skip. A specification that only ever directs work, and is never used to check the result against, is a wish list.

This matters more as producing a candidate implementation gets cheaper. An assistant can draft questions, propose alternatives, or write code, but it cannot establish what stakeholders actually want, and it cannot decide a trade-off between things two of them both want. Those stay with the people accountable for the product, which is why writing the specification, and the judgment that goes into it, is the part of this work that does not get handed off.

Software design has two main aspects:

• Product/external design: designing the external behavior of the product to meet the users' requirements. This is usually done by product designers with input from business analysts, user experience experts, user representatives, etc.
• Implementation/internal design: designing how the product will be implemented to meet the required external behavior. This is usually done by software architects and software engineers.

The guiding principle of abstraction is that only details that are relevant to the current perspective or the task at hand need to be considered. As most programs are written to solve complex problems involving large amounts of intricate details, it is impossible to deal with all these details at the same time. That is where abstraction can help.

Data abstraction: abstracting away the lower level data items and thinking in terms of bigger entities
Example Within a certain software component, you might deal with a user data type, while ignoring the details contained in the user data item such as name and date of birth. These details have been ‘abstracted away’ as they do not affect the task of that software component.

Control abstraction: abstracting away details of the actual control flow to focus on tasks at a higher level
Example print("Hello") is an abstraction of the actual output mechanism within the computer.

Abstraction can be applied repeatedly to obtain progressively higher levels of abstraction.
Example Levels of data abstraction: a File is a data item that is at a higher level than an array, and an array is at a higher level than a bit.
Example Levels of control abstraction: execute(Game) is at a higher level than print(Char), which is at a higher level than an Assembly language instruction MOV.

Abstraction is a general concept that is not limited to just data or control abstractions.

Coupling is a measure of the degree of dependence between components, classes, methods, etc. Low coupling indicates that a component is less dependent on other components. High coupling (aka tight coupling or strong coupling) is discouraged due to the following disadvantages:

• Maintenance is harder because a change in one module could cause changes in other modules coupled to it (i.e., a ripple effect).
• Integration is harder because multiple components coupled with each other have to be integrated at the same time.
• Testing and reuse of the module are harder due to its dependence on other modules.

Example Design A appears to have more coupling between the components than design B.

X is coupled to Y if X depends on Y such that some changes to Y may require corresponding changes in X.

Cohesion is a measure of how strongly related and focused the various responsibilities of a component are. A highly cohesive component keeps related functionalities together while keeping out all other unrelated things.

Higher cohesion is better. Disadvantages of low cohesion (aka weak cohesion):

• Lowers the understandability of modules as it is difficult to express module functionalities at a higher level.
• Lowers maintainability because a module can be modified due to unrelated causes (reason: the module contains unrelated pieces of code) or many modules may need to be modified to achieve a small change in behavior (reason: the code related to that change is not localized to a single module).
• Lowers reusability of modules because they do not represent logical units of functionality.

Cohesion can be present in many forms. Some examples:

• Code related to a single concept is kept together, e.g. the Student component handles everything related to students.
• Code that is invoked close together in time is kept together, e.g. all code related to initializing the system is kept together.
• Code that manipulates the same data structure is kept together, e.g. the GameArchive component handles everything related to the storage and retrieval of game sessions.

Example Suppose a Payroll application contains a class that deals with writing data to the database. If the class includes some code to show an error dialog to the user if the database is unreachable, that class is not cohesive because it seems to be interacting with the user as well as the database.

A model is a representation of something else.
Example A class diagram is a model that represents a software design.

A model provides a simpler view of a complex entity because a model captures only a selected aspect. This omission of some aspects implies models are abstractions.

Example A class diagram captures the structure of the software design but not the behavior.

Multiple models of the same entity may be needed to capture it fully.
Example In addition to a class diagram (or even multiple class diagrams), a number of other diagrams may be needed to capture various interesting aspects of the software.

In software development, models are useful in several ways:

a) To analyze a complex entity related to software development, such as the the software has to operate in.

b) To communicate information among stakeholders. Models can be used as a visual aid in discussions and documentation.

c) As a blueprint for creating software. Models can be used as instructions for building software.

The following diagram uses the class diagram notation to show the different types of UML diagrams.

An OO solution is basically a network of objects interacting with each other. Therefore, it is useful to be able to model how the relevant objects are 'networked' together inside a software i.e., how the objects are connected together.

Note that these object structures within the same software can change over time.

However, object structures do not change at random; they change based on a set of rules set by the designer of that software. Those rules that object structures need to follow can be illustrated as a class structure i.e., a structure that exists among the relevant classes.

UML Object Diagrams model object structures. UML Class Diagrams model class structures.

Classes form the basis of class diagrams.

Associations are the main connections among the classes in a class diagram.

The most basic class diagram is a bunch of classes with some solid lines among them to represent associations, such as this one.

Example A class diagram showing associations between classes.

In addition, associations can show additional decorations such as association labels, association roles, multiplicity and navigability to add more information to a class diagram.

Example Here is the same class diagram shown earlier but with some additional information included:

UML notes can be used to add more info to any UML model.

A class diagram can also show different types of relationships between classes: inheritance, compositions, aggregations, dependencies.

A class diagram can also show different types of class-like entities:

A class diagram can show association classes too.

UML elements can be further customized using the UML stereotypes mechanism.

Object diagrams use a notation similar to that of class diagrams (as the former are instantiations of the latter).

The analysis process for identifying objects and object classes is recognized as one of the most difficult areas of object-oriented development. _{--Ian Sommerville, in the book Software Engineering}

When building an OOP system, it makes sense to build OOP models of the problem domain, given OOP aspires to emulate the objects in the real world.

The UML models that capture class structures in the problem domain are called conceptual class diagrams. They are in fact a lighter version of class diagrams, and sometimes also called OO domain models (OODMs). The latter name is somewhat misleading as conceptual class diagrams (CCDs) are actually only one type of domain model that can model an OOP problem domain.

Example The CCD of a snakes and ladders game is given below.

Description: The snakes and ladders game is played by two or more players using a board and a die. The board has 100 squares marked 1 to 100. Each player owns one piece. Players take turns to throw the die and advance their piece by the number of squares they earned from the die throw. The board has a number of snakes. If a player’s piece lands on a square with a snake head, the piece is automatically moved to the square containing the snake’s tail. Similarly, a piece can automatically move from a ladder foot to the ladder top. The player whose piece is the first to reach the 100th square wins.

CCDs do not contain solution-specific classes (i.e., classes that are used in the solution domain but do not exist in the problem domain). For example, a class called DatabaseConnection could appear in a class diagram but not usually in a CCD because DatabaseConnection is something related to a software solution but not an entity in the problem domain.

CCDs represent the class structure of the problem domain and not their behavior, just like class diagrams. To show behavior, use other diagrams such as sequence diagrams.

CCD notation is a subset of the class diagram notation (omits methods and navigability).

Software projects often involve workflows. Workflows define the in which a process or a set of tasks is executed. Understanding such workflows is important for the success of the software project.
Example A software that automates the work of an insurance company needs to take into account the workflow of processing an insurance claim.
Example The algorithm of a piece of code represents the workflow (i.e., the execution flow) of the code.

Sequence diagrams model the interactions between various entities in a system, in a specific scenario. Modeling such scenarios is useful, for example, to verify the design of the internal interactions is able to provide the expected outcomes.

Example Modeling how components of a system interact with each other to respond to a user action.
Example Modeling how objects inside a component interact with each other to respond to a method call it received from another component.

Use case diagrams model the mapping between features of a system and its user roles i.e., which user roles can perform which tasks using the software.

Example A use case diagram for a ticket machine:

You can use models to analyze and design software before you start coding.

Suppose you are planning to implement a simple minesweeper game that has a text-based UI and a GUI. Given below is a possible OOP design for the game.

Before jumping into coding, you may want to find out things such as,

• Can this class structure produce the behavior you want?
• What API should each class have?
• Do you need more classes?

To answer these questions, you can analyze how the objects of these classes will interact with each other to produce the behavior you want.

As mentioned in [Design → Modeling → Modeling a Solution → Introduction], this is the Minesweeper design you have come up with so far. Our objective is to analyze, evaluate, and refine that design.

Let us start by modeling a sample interaction between the person playing the game and the TextUi object.

newgame and clear x y represent commands typed by the Player on the TextUi.

How does the TextUi object carry out the requests it has received from the player? It would need to interact with other objects of the system. Because the Logic class is the one that controls the game logic, the TextUi needs to collaborate with Logic to fulfill the newgame request. Let us extend the model to capture that interaction.

W = Width of the minefield; H = Height of the minefield

The above diagram assumes that W and H are the only information TextUi requires to display the minefield to the Player. Note that there could be other ways of doing this.

The Logic methods you conceptualized in our modeling so far are:

Now, let us look at what other objects and interactions are needed to support the newGame() operation. It is likely that a new Minefield object is created when the newGame() method is called.

Note that the behavior of the Minefield constructor has been abstracted away. It can be designed at a later stage.

Given below are the interactions between the player and the TextUi for the whole game.

When you write a small program by yourself, you can hold its structure in your head. You know where each piece of functionality lives, and you can usually predict what a change will affect.

That becomes much harder as the software and its team grow. Several people add code to the same program at once, and none of them has read all of it. Questions that once seemed trivial start to matter:

• Where does this new code belong?
• Where does each part run?
• How do the parts communicate?
• Which qualities matter most — ease of change, speed, reliability, security?

Software architecture is the set of significant decisions about a system's overall organization. It identifies the major parts, their responsibilities, how they interact, and how they are deployed.

Example Consider a desktop invoice-management application in which users create invoices, set due dates, and mark invoices as paid. A possible architecture has four parts:

Each arrow in the diagram is a dependency: the part at the tail needs the part at the head.

• Ui: displays information and receives user input
• Logic: interprets user actions and carries out operations
• Model: represents invoices and other data while the program runs
• Storage: reads data from and writes it to persistent storage

An architecture description deliberately leaves out most of what is inside each part. It does not say how many classes are in Logic, which one validates a user command, or which collection holds the invoices. Those are detailed design decisions.

Architecture and detailed design differ in how far a decision reaches, not merely in how big it is. An architectural decision constrains what the other parts can do, shapes the qualities the system can achieve, and is expensive to reverse once the rest of the system is built on it.

The boundary is not absolute. An internal choice becomes architecturally significant when it strongly affects the rest of the system.

Every software system has an architecture, even when nobody designed one deliberately. An unplanned program still has parts and dependencies; they are simply accidental, undocumented, and usually tangled. The value of deciding an architecture on purpose is that the team shares one, understands it, and can reason about it.

An architecture is a shared and evolving technical understanding, not one person's private plan. A team sets an initial architecture early — the decisions are expensive to reverse later — then tests it against real requirements and revises it deliberately when those requirements change. Larger organizations may give one person an architect role to hold the technical vision, but the architecture still has to be understood by everyone building the system.

An architecture is also more than a diagram. Although an architecture is often represented by a diagram (like the one in the example above), a diagram shows one view. The architecture also includes the constraints everyone must work within and the reasons behind the choices.

The definition above is widely quoted in the literature. "Externally visible properties" means what promises to do, not how it does it.

A useful architecture limits how far many changes spread through the system.

Architecture does not restrain the spread of every change. That is not necessarily an architectural failure: some changes genuinely cross several responsibilities.

Architecture also shapes the system's quality attributes — the properties that decide whether the software is good enough for its purpose. Common quality attributes include:

• Modifiability — how easily it can be changed
• Performance — how quickly it responds
• Reliability — how well it keeps working when something fails
• Security — how well it protects data and resists misuse
• Deployability — how easily a new version reaches users

Quality attributes often conflict, and that is the central difficulty of architecture. Splitting a system across machines can allow independent scaling while making it slower and adding network failures. Adding component boundaries can limit how far a change spreads while adding interfaces that developers must learn and maintain.

There is no architecture that is best on every attribute — only one that fits the qualities and likely changes that matter for the system being built.

Three words do most of the work in architecture descriptions: components, interfaces, dependencies.

A component is a major part of the system with one coherent responsibility.

An interface is the agreement stating how the rest of the system may use a component. It is more than a list of operations. A complete interface also covers:

• the data each operation accepts and returns;
• what happens when an operation succeeds or fails; and
• for a component reached over a network, the format and protocol of the messages.

A dependency exists when one component relies on another to do its job. Dependencies have a direction, and that direction matters more than almost anything else in an architecture.

A component is not a special programming construct. There is no component keyword; a component is whatever unit of code the team agrees to treat as one part with one responsibility. It may be a separate library, a language-level module, or an entirely separate program reached over a network. Its agreed responsibility and interface make it a component, not its folder layout.

A dependency arrow describes reliance, not necessarily a method call. Whether that reliance is a method call, a message, or a network request is exactly what the legend must tell you.

Depending on the interface rather than a specific implementation is what makes a component replaceable. Such a replacement works only if it honors the same behavior, including its failure behavior — matching method names is not enough.

The same system can be drawn in more than one way, depending on what you want to show. Here are two commonly used views:

1. A logical view shows the major parts and which parts depend on which. It says nothing about where any of it runs.
2. A deployment view shows where the parts actually run. For the desktop invoice manager the deployment view is almost boring: all four parts run inside one program, on the user's computer.

Example The same invoice manager, but two views of the architecture:

Each arrow in the logical view is a dependency. The deployment view has no arrows because all four parts run inside one program on one computer.

That deployment view in the example looks trivial, which is exactly the point. Right now all the interesting structure is logical. When a server is added to let several users share invoices, both views change — the deployment view dramatically, the logical view in a smaller but real way.

Keeping the views separate prevents a common confusion.

Architecture diagrams have no universally adopted notation. Unlike UML class diagrams, there is no rulebook: different teams use different shapes, colors, and arrows. A reader must first work out what the notation means.

Read an architecture diagram by asking four questions in order:

1. What view is this? Code organization, deployment, communication, or something else — each shows different information.
2. What are the major parts? Usually the boxes. Expect a handful, not thirty.
3. What is each part responsible for? Names, labels, and nearby text should make this clear.
4. What do the relationships mean? Follow each arrow's direction, and check the legend for what an arrow means.

A single diagram need not explain the whole architecture, but it must communicate its chosen view without ambiguity. Judge it against its stated purpose and the documentation it ships with: if the four questions cannot be answered from the diagram, its caption, and the text around it, something is missing — a useful thing to notice when reviewing a teammate's work.

While architecture diagrams have no standard notation, follow these guidelines when drawing them.

• State the view and what the arrows mean. Put the meaning in a legend or caption. If you need two kinds of arrow, make them visually different and label both.
• Name each component by its responsibility, not its current implementation.
  Example Storage stays accurate if the implementation changes; JsonFileHandler becomes a lie the day you switch to a database.
• Show only what is architecturally relevant. If a box maps one-to-one onto a single class, the diagram has drifted into detailed design. A crowded diagram is usually a sign that it has slipped to a lower level of abstraction than it claims.
• Minimize the variety of symbols, and prefer familiar ones e.g., a drum shape is widely understood to represent a database. Explain any symbol whose meaning may not be obvious.
• Avoid the indiscriminate use of double-headed arrows.

Example Consider the two architecture diagrams of the same software given below. Because Diagram 2 uses double-headed arrows everywhere, the important fact that GUI has a genuinely bidirectional dependency with the Logic component is no longer visible — it looks like every other connection.

An architectural style is a reusable way of organizing the major parts of a system (aka architectural pattern), just as building architectures follow recognized styles. Naming a style (e.g., "layered", "client-server") lets developers refer to a familiar arrangement without explaining it from scratch.

Different styles describe different aspects of a system, which is why one system can use several at once. This is the most useful thing to know before learning different architectural styles.

In the layered style, the software is divided into layers whose dependencies all point one way — downward. Higher layers use services provided by lower ones; lower layers know nothing about the layers above.

Layered designs differ in how strictly they enforce the separation. In strict (or closed) layering, a layer may use only the layer immediately below it. In the more common relaxed form, a layer may use any lower layer, skipping intermediate ones. What both share, and what actually matters, is that dependencies never point back up. Because a lower layer depends on nothing above it, you can understand, test, and replace it on its own. The moment Storage calls back into Ui to show an error dialog, that property is lost and the two must be understood together.

Layers are not tiers. A layer is a logical division inside the software; a tier is a part that is deployed separately. The two are often confused, partly because the term n-tier is frequently used to mean layered.

A monolith is a system deployed as a single unit. You build one artifact and release it as a whole. A typical desktop application is a monolith, as is a great deal of successful commercial software.

Being one deployable unit does not mean one running process. A monolith may be launched as several processes, or run as many identical copies behind a load balancer — but they are all copies of the same thing, released together.

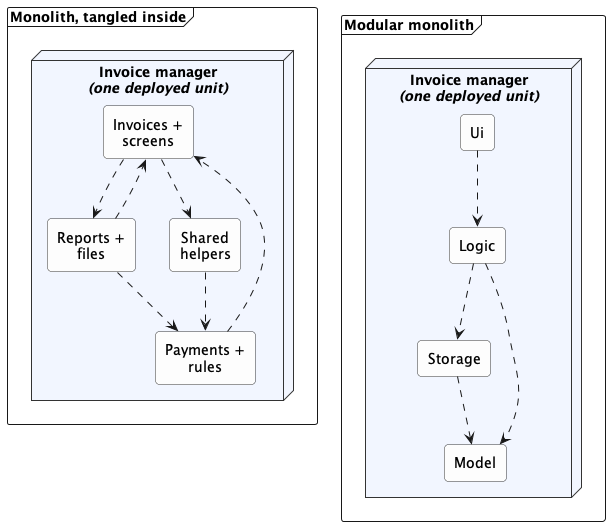

A modular monolith is a single deployable unit organized internally into well-defined components. It is still one artifact, but inside it the parts have clear responsibilities, clear interfaces, and disciplined dependencies.

"Monolith" is not a synonym for "badly structured." This is the most common misunderstanding. The word describes how the system is deployed, not how well it is organized. A tangled ball of mud and a disciplined modular monolith share a deployment shape but differ enormously inside; what separates them is whether the internal components and dependencies are real.

Each arrow is a dependency. Both are monoliths — one deployed unit each, identical from the outside. What differs is inside: on the left, responsibilities are mixed and dependencies point both ways; on the right, each component has one job and the dependencies run one way.

The modular monolith is usually the sensible starting point for one team building one product. It keeps building, testing, and debugging simple while still encouraging clear responsibilities.

In the event-driven style, work is triggered by rather than by direct calls. The component that raises an event is the emitter; the components that react to it are consumers.

Notation used in this diagram and the next: a dashed arrow is the path along which events travel, each oval is one event, and the small red arrows show their direction of travel.

If you have written a graphical user interface, you have written event-driven code. A button does not contain the logic that runs after a click; the UI framework delivers the click event to whatever handler registered for it. You never wrote code asking "has the button been pressed yet?"

Event delivery has two separate dimensions:

• Local or distributed. Events may be delivered inside one program, or across a network between separate programs.
• Synchronous or asynchronous. The emitter may wait for consumers to finish, or carry on immediately while they are notified later.

Calling a design "event-driven" settles neither dimension. A GUI button click is local, and it is not strictly synchronous either: the click is usually placed on a local event queue and handled shortly afterward by the interface thread. It is still fully event-driven.

Distributed event-driven systems often use publish-subscribe communication. An emitter publishes an event to a message broker, which delivers it to whichever components have subscribed. The emitter need not know which consumers exist, and one event can reach any number of them.

You gain decoupling and give up traceability. A new consumer can subscribe without the emitter changing at all — but the list of consumers still exists (the framework or broker holds it), it is just no longer visible where the event is raised.

In the client-server style, a server provides a capability or data, and one or more clients use it.

Sharing data among several installations is the most common reason to reach for client-server, but it is not the only one — clients also use a server for centralized computation, authentication, or coordination. In the shared-data case, the fix is to give the shared data a home of its own: a separate program — the server — becomes the authoritative owner of the invoices, and each desktop application becomes a client, sending a request such as "add this invoice" and receiving a response from the server.

Example Suppose several users need to edit the same set of invoices from their own desktop applications. Local files no longer suffice, because each installation would hold a different copy, and no installation can reach another's hard disk.

Adding a server changes both views of the invoice manager. In the logical view, RemoteStorage now depends on a request handler that owns the shared data; in the deployment view, client and server become separately deployed parts that exchange messages over a network.

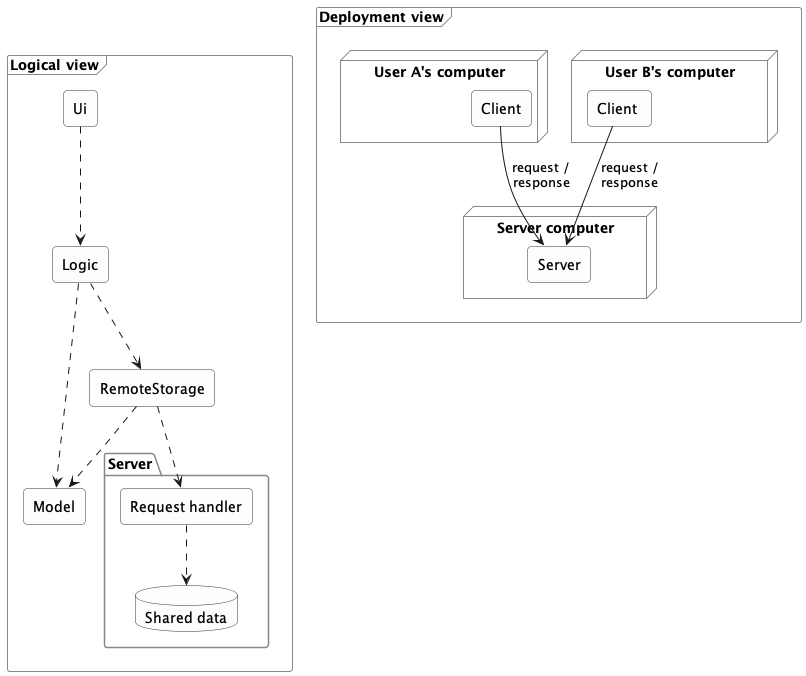

In the logical view, each arrow is a dependency. In the deployment view, each arrow is a message sent between separately deployed parts.

Adding a server changes more than the location of data storage (or whatever else the clients need to share). A real split adds architectural elements and concerns:

• a client-side component that sends requests;
• a server-side component that receives and handles them;
• an agreed request and response format, so both sides read messages the same way; and
• handling for timeouts, failures, and version mismatches — concerns that the purely local design did not have.

A good interface limits the impact of moving to a client-server architecture but does not avoid it entirely.

This is also where tiers appear. The client program is one tier and the server another — a tier being a separately deployed part, not necessarily one physical machine.

A network boundary adds costs that local calls never had:

• Requests take far longer, and less predictably. A method call inside a program is orders of magnitude faster than a request that crosses a network, and unlike a local call, a network request takes a different amount of time on each attempt. Users notice both.
• Failures can be partial. A timeout does not reveal whether the server failed before or after doing the work. Retrying carelessly can perform the operation twice.
• Versions must stay compatible. A new server may still receive requests from an old client.
• Security becomes prominent. The server must decide who may read or change the shared data.

Example Client-server is extremely common — online games, email, collaborative applications, and web applications all use it, though it is in no way limited to browser-based software.

A service exposes a published interface that other software can use over a network. Callers depend on the agreement, not on the service's programming language or internal implementation, so a service written in one language can be used by a program written in another.

The service-oriented architecture (SOA) style organizes a system around such network-accessible services, often to connect capabilities owned by different applications or organizations.

Example Suppose one company provides a service for browsing and buying merchandise, and a bank provides a service for charging its credit cards. A third party can build an online bookshop that combines them — letting customers buy books and pay by card — even though all three systems are built on different platforms.

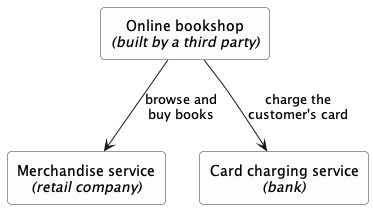

Each arrow is a call over a network, through a published interface. Three owners, three platforms: the bookshop depends on what each service promises, not on how that service is built.

Early SOA was strongly associated with XML web services and the SOAP standard; modern services usually exchange much simpler messages, most often JSON over ordinary HTTP. The architectural idea — published, network-accessible, platform-independent interfaces — does not depend on the message format.

The microservice style builds one product as a collection of independently deployable services, each focused on a capability and usually owning the data behind its interface. Micro does not prescribe a line count: independent deployability around a focused responsibility matters far more than physical size. A payment service may be substantial and still be a microservice, if it can be released without redeploying anything else.

Microservices are best understood by contrast with the modular monolith. Both organize a system into components with clear responsibilities; the difference is where the boundaries fall.

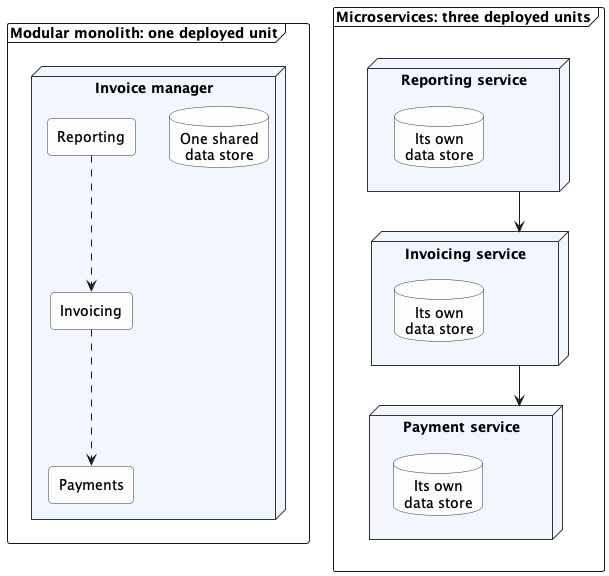

In this diagram, a dashed arrow is a direct call inside one program, and a solid arrow is a request that crosses a network. The same three responsibilities appear on both sides; only the boundaries move. Both sides divide the work by capability rather than by layer, and each service on the right is still layered inside.

Microservices trade operational simplicity for team and deployment independence. If several teams each own a service, each can release or scale its service without redeploying the others — a large benefit at that scale. In exchange, calls that were method calls become network requests that can time out, no single store can answer "is this data consistent?", and a failing service can drag down the ones that depend on it.

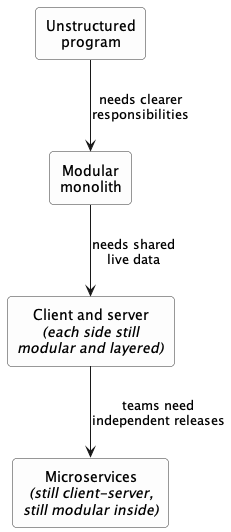

Good module boundaries make later extraction easier, but never automatic. The code may move cleanly while the data does not: a boundary that separates two things previously updated together in one local transaction forces a decision about what happens when one update succeeds and the other fails — a problem that did not exist before the split.
