Week 4 [Mon, Aug 31st] - Topics

A model is a representation of something else.
Example A class diagram is a model that represents a software design.

A model provides a simpler view of a complex entity because a model captures only a selected aspect. This omission of some aspects implies models are abstractions.

Example A class diagram captures the structure of the software design but not the behavior.

Multiple models of the same entity may be needed to capture it fully.
Example In addition to a class diagram (or even multiple class diagrams), a number of other diagrams may be needed to capture various interesting aspects of the software.

In software development, models are useful in several ways:

a) To analyze a complex entity related to software development, such as the the software has to operate in.

b) To communicate information among stakeholders. Models can be used as a visual aid in discussions and documentation.

c) As a blueprint for creating software. Models can be used as instructions for building software.

The following diagram shows different subtypes of UML diagrams.

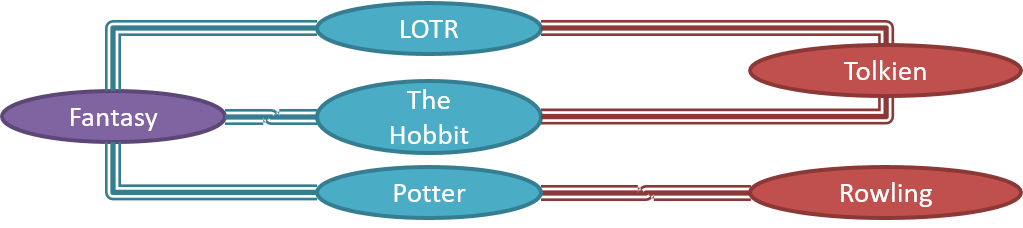

An OO solution is basically a network of objects interacting with each other. Therefore, it is useful to be able to model how the relevant objects are 'networked' together inside a software i.e., how the objects are connected together.

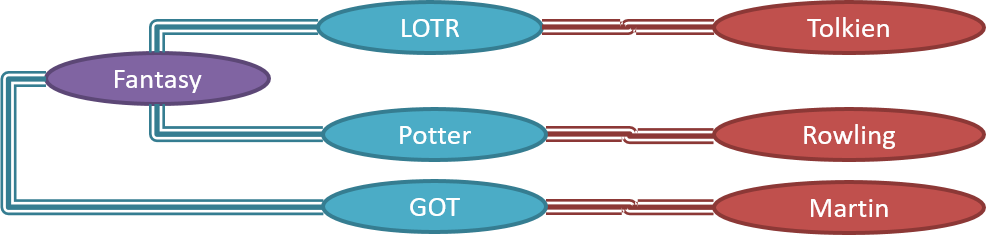

Note that these object structures within the same software can change over time.

However, object structures do not change at random; they change based on a set of rules set by the designer of that software. Those rules that object structures need to follow can be illustrated as a class structure i.e., a structure that exists among the relevant classes.

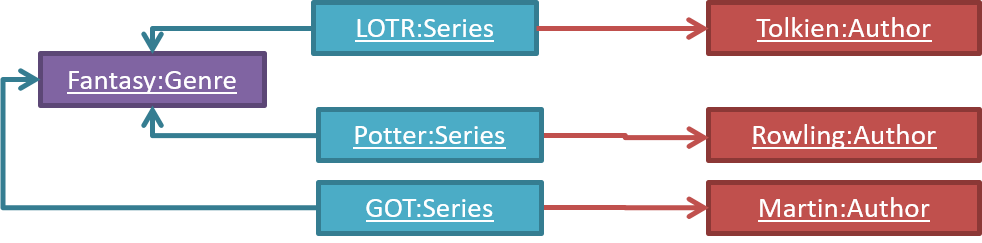

UML Object Diagrams model object structures. UML Class Diagrams model class structures.

Classes form the basis of class diagrams.

Associations are the main connections among the classes in a class diagram.

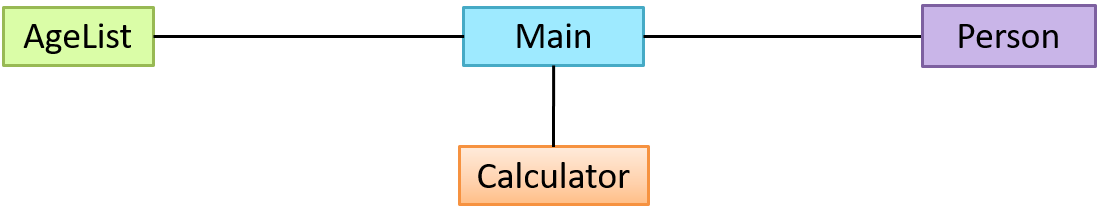

The most basic class diagram is a bunch of classes with some solid lines among them to represent associations, such as this one.

Example A class diagram showing associations between classes.

In addition, associations can show additional decorations such as association labels, association roles, multiplicity and navigability to add more information to a class diagram.

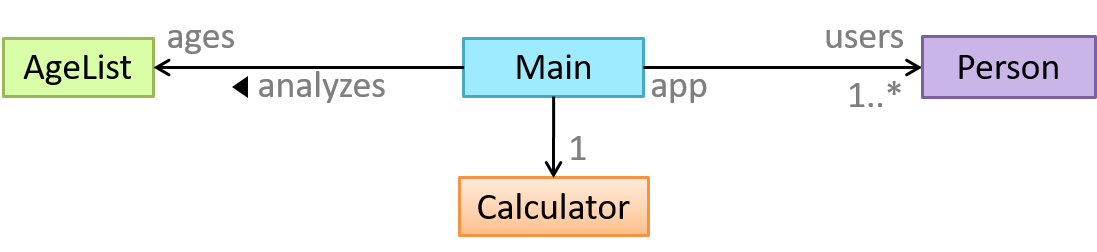

Example Here is the same class diagram shown earlier but with some additional information included:

Object diagrams use a notation similar to that of class diagrams (as the former are instantiations of the latter).

Compared to the notation for class diagrams, object diagrams differ in the following ways:

• Show objects instead of classes:
  • Instance name may be shown
  • There is a : before the class name
  • Instance and class names are underlined
• Methods are omitted
• Multiplicities are omitted. Reason: an association line in an object diagram represents a connection to exactly one object (i.e., the multiplicity is always 1).

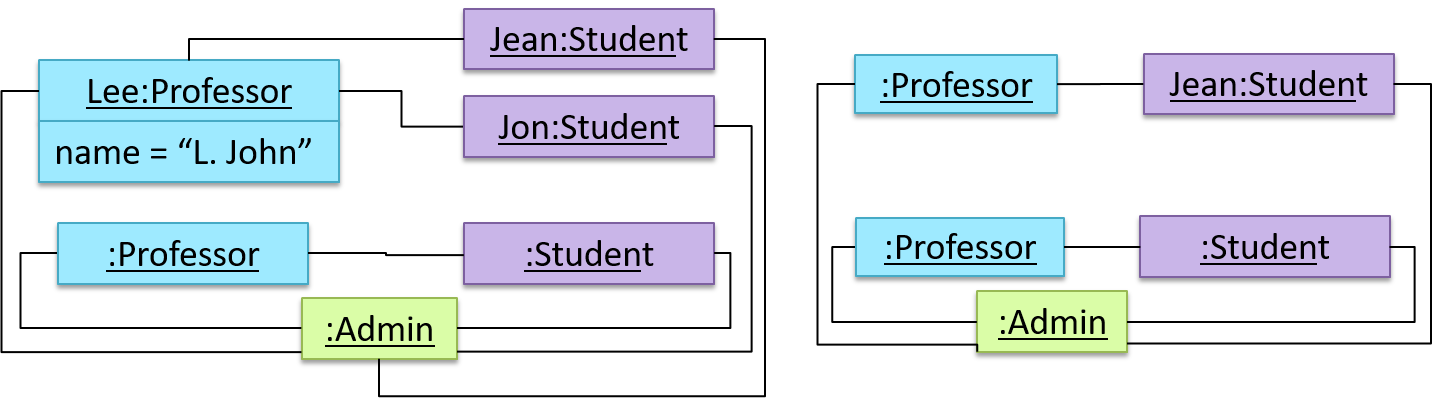

Furthermore, multiple object diagrams can correspond to a single class diagram.

Both object diagrams are derived from the same class diagram shown earlier. In other words, each of these object diagrams shows ‘an instance of’ the same class diagram.

When the class diagram has an inheritance relationship, the object diagram should show either an object of the parent class or the child class, but not both.

Suppose Employee is a child class of the Person class. The class diagram will be as follows:

Now, how do you show an Employee object named jake?

• This is not correct, as there should be only one object.

• This is OK.

• This is OK, as jake is a Person too. That is, we can show the parent class instead of the child class if the child class doesn't matter to the purpose of the diagram (i.e., the reader of this diagram will not need to know that jake is in fact an Employee).

Association labels/roles can be omitted unless they add value (e.g., showing them is useful if there are multiple associations between the two classes in concern -- otherwise you wouldn't know which association the object diagram is showing)

Consider this class diagram and the object diagram:

We can clearly see that both Adam and Eve lives in hall h1 (i.e., OK to omit the association label lives in) but we can't see if History is Adam's major or his minor (i.e., the diagram should have included either an association label or a role there). In contrast, we can see Eve is an English major.

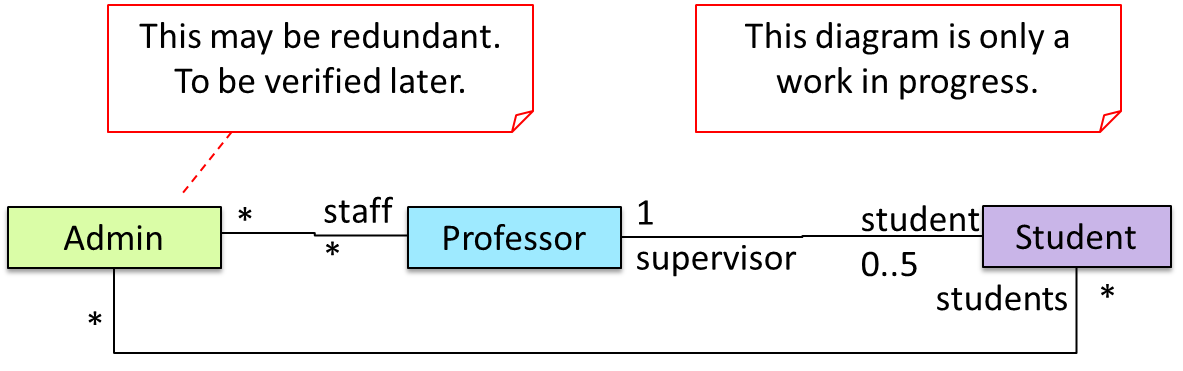

UML notes can augment UML diagrams with additional information. These notes can be shown connected to a particular element in the diagram or can be shown without a connection. The diagram below shows examples of both.

Example:

A class diagram can also show different types of relationships between classes: inheritance, compositions, aggregations, dependencies.

A class diagram can also show different types of class-like entities:

An association class represents additional information about an association. It is a normal class but plays a special role from a design point of view.
Example A Man class and a Woman class are linked with a ‘married to’ association and there is a need to store the date of marriage. However, that data is related to the association rather than specifically owned by either the Man object or the Woman object. In such situations, an additional association class can be introduced, e.g., a Marriage class, to store such information.

Implementing association classes

There is no special way to implement an association class. It can be implemented as a normal class that has variables to represent the endpoints of the association it represents.

class Transaction {

    //all fields are compulsory
    Person seller;
    Person buyer;
    Date date;
    String receiptNumber;

    Transaction(Person seller, Person buyer, Date date, String receiptNumber) {
        //set fields
    }
}



    Copy










    Wrap Text

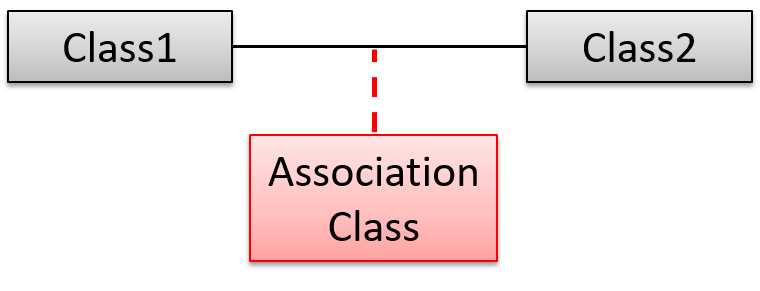

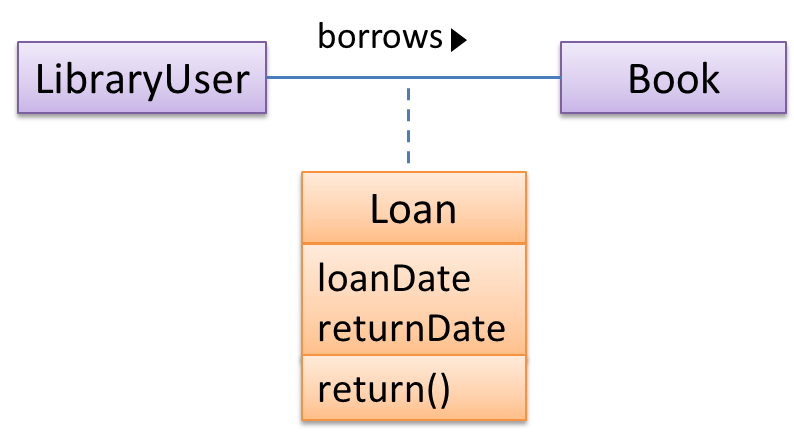

Association classes are denoted as a connection to an association link using a dashed line as shown below.

In this example Loan is an association class because it stores information about the borrows association between the User and the Book.

UML stereotypes are a lightweight extension mechanism for adding domain-specific meaning to existing UML elements without changing the core UML language. They label elements such as classes, objects, or relationships with roles or semantics beyond their default interpretation (for example, <<entity>>, <<create>>, <<facade>>), helping readers understand intent, architectural responsibilities, or usage patterns at a glance. Stereotypes do not change the fundamental structure of the model; instead, they enrich it with contextual meaning, often forming part of a UML profile tailored to a particular problem domain.

Example:

The same << >> notation is also used to denote built-in classifier kinds <<interface>> and <<enumeration>>. While they look like stereotypes syntactically, they are semantically closer to keywords indicating the element’s true type -- unlike stereotypes, which are optional information that don't change the underlying UML element. For example, removing a stereotype from an element doesn't change the type of the element but removing <<interface>> or <<enumeration>> from an element changes the element to a regular class.

JavaFX is a technology for building Java-based GUIs. Previously it was a part of Java itself, but has become a third-party dependency since then. It is now being maintained by OpenJDK.

Refer to the JavaFX tutorial @SE-EDU/guides to learn how to get started with JavaFX.

Variable Arguments (Varargs) is a syntactic sugar type feature that allows writing a method that can take a variable number of arguments.

public static void search(String ... keywords) {
   // method body
}



    Copy










    Wrap Text









Resources:

• Java Varargs feature (from Oracle.com)

Proper naming improves the readability of code. It also reduces bugs caused by ambiguities regarding the intent of a variable or a method.

There are only two hard things in Computer Science: cache invalidation and naming things. _{-- Phil Karlton}

Every system is built from a domain-specific language designed by the programmers to describe that system. Functions are the verbs of that language, and classes are the nouns.
_{-- Robert C. Martin, Clean Code: A Handbook of Agile Software Craftsmanship}

Use nouns for classes/variables and verbs for methods/functions.

Distinguish clearly between single-valued and multi-valued variables.

Person student;
ArrayList<Person> students;



    Copy










    Wrap Text









name = 'Jim'
names = ['Jim', 'Alice']



    Copy










    Wrap Text









Use correct spelling in names. Avoid 'texting-style' spelling. Avoid foreign language words, slang, and names that are only meaningful within specific contexts/times e.g., terms from private jokes, a TV show currently popular in your country.

A name is not just for differentiation; it should explain the named entity to the reader accurately and at a sufficient level of detail.

If a name has multiple words, they should be in a sensible order.

Imagine going to the doctor's and saying "My eye1 is swollen"! Don’t use numbers or case to distinguish names.

While it is preferable not to have lengthy names, names that are 'too short' are even worse. If you must abbreviate or use acronyms, do it consistently. Explain their full meaning at an obvious location.

Related things should be named similarly, while unrelated things should NOT.

Avoid misleading or ambiguous names (e.g., those with multiple meanings), similar-sounding names, hard-to-pronounce ones (e.g., avoid ambiguities like "is that a lowercase L, capital I or number 1?", or "is that number 0 or letter O?"), almost similar names.

Static analysis of code can find useful information such as unused variables, unhandled exceptions, style errors, and statistics. Most modern IDEs come with some inbuilt static analysis capabilities. For example, an IDE can highlight unused variables as you type the code into the editor.

The term static in static analysis refers to the fact that the code is analyzed without executing the code. In contrast, dynamic analysis requires the code to be executed to gather additional information about the code, e.g., performance characteristics.

Higher-end static analysis tools (static analyzers) can perform more complex analysis such as locating potential bugs, memory leaks, and inefficient code structures.
Example Some static analyzers for Java: CheckStyle, PMD, FindBugs

Linters are a subset of static analyzers that specifically aim to locate areas where the code can be made 'cleaner'.

Code review is the systematic examination of code with the intention of finding where the code can be improved.

Reviews can be done in various forms. Some examples are:

• Pull Request reviews

  • Project management platforms such as GitHub and BitBucket allow new code to be proposed as Pull Requests and provide the ability for others to review the code in the PR.

• In pair programming

  • Because pair programming involves two programmers working on the same code at the same time, there is an implicit review of the code by the other member of the pair.

• Formal inspections

  • Inspections involve a group of people systematically examining project artifacts to discover defects. Members of the inspection team play various roles during the process, such as:

    • the author - the creator of the artifact
    • the moderator - the planner and executor of the inspection meeting
    • the secretary - the recorder of the findings of the inspection
    • the inspector/reviewer - the one who inspects/reviews the artifact

Advantages of code review over testing:

• It can detect functionality defects as well as other problems such as coding standard violations.
• It can verify non-code artifacts and incomplete code.
• It does not require test drivers or stubs.

Disadvantages:

• It is a manual process and is therefore error-prone.

See Git-Mastery → Lesson T9L2. Reviewing Pull Requests
